Introduction

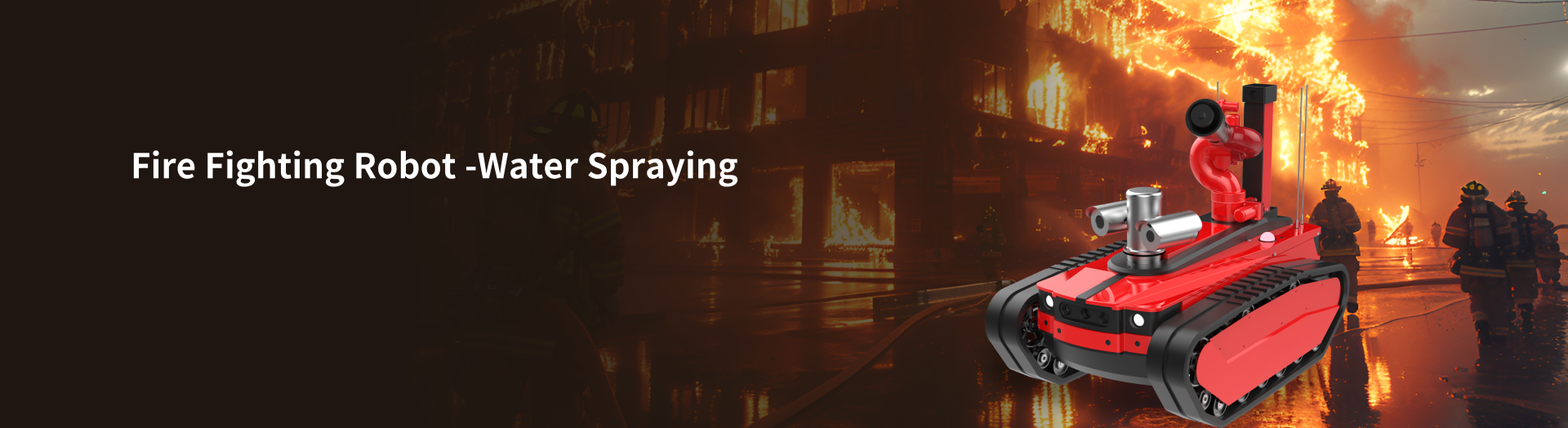

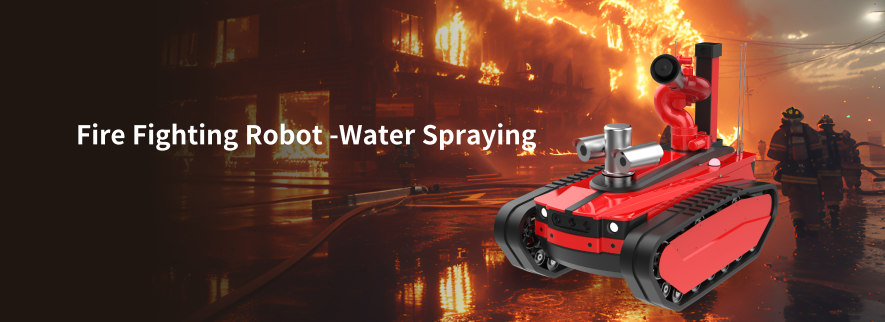

In a fire scene, extreme conditions such as fierce flames, explosions, high temperatures, thick smoke, toxic gases, and lack of oxygen make it difficult for firefighters to carry out rescue operations. Our company has independently developed fire fighting robot that can replace firefighters inextremely hazardous areas for firefighting and rescue work. These robotsplay a crucial role in enhancing the safety of firefighting operations andreducing casualties. Additionally, they are equipped with multiple functions such as extinguishing fires, reconnaissance, and rescue, graduallybecoming more automated and intelligent, allowing them to be utilized in a wider range of complex rescue situations.

Features

360° Explosion-Proof PTZ Camera

Heavy Transport Capacity

Strong Towing Capability

Large-Flow Fire Cannon

Toxic Gas Detection

Parameters

Battery Voltage

DC 48V

Maximum Speed

1.8m/s

Autonomy

≥3.5h

Charging Time

≤8h

IP Rating

IP66

IECEx Rating

Ex db eb mb llB T4 Gb

Control Mode

10.1-Inch Display with Wireless Remote Control

Minimum Turning Radius

870mm

Horizontal Rotation Angle of the Water Cannon

-170°~+170°(with optional lifting rod -150°+150°)

Vertical Rotation Angle of the Water Cannon

-5°~+70°

Water Flow Rate

80L/s

Water Spray Range

≥85m

Maximum Lifting Height

1650mm

Traction Force

5020N

Product Weight

≤570kg

Size

1690*1035*1245mm
