Introduction

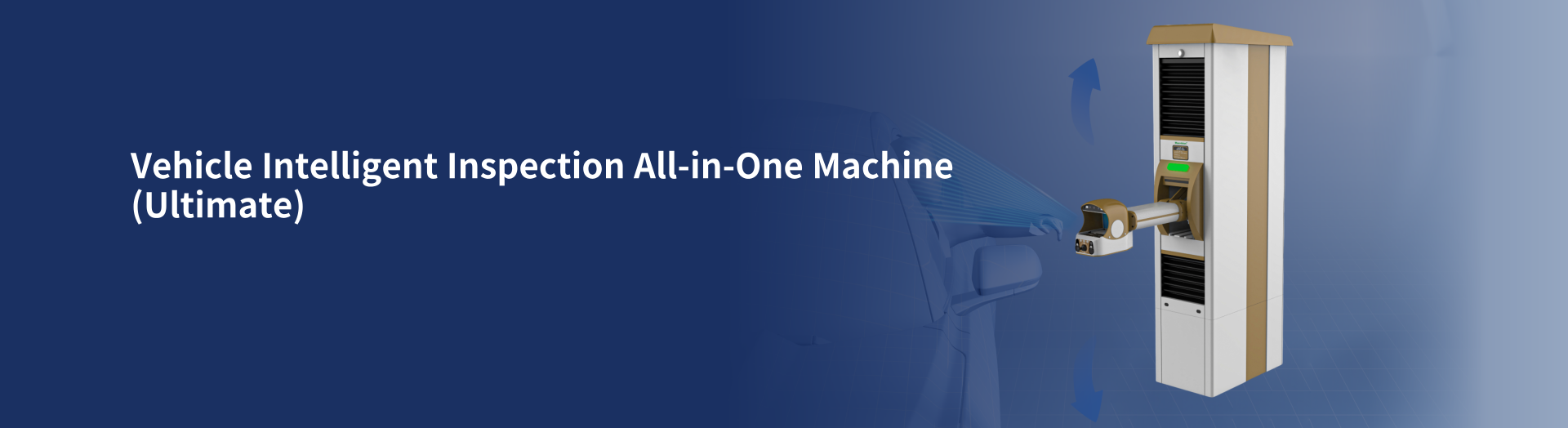

Maxvision independently developed this Vehicle Access Control Machine which is an intelligent checking product. This product is designed to enhance the automated management of lanes and to self-capture and verify the identity of personnel passing on the lanes. Functioning automatic positioning of the acquisition device, intelligent avoidance of obstacles, face recognition, iris recognition, lD reading, interactive guidance, visible conversation, panoramic surveillance, linkage control and so on. lt is suitable for campus, ports that need to capture and verify the information of passengers in the lane.

Features

Automatic Positioning of the Acquisition Device

Intelligent Avoidance of Obstacles

Panoramic Surveillance

Panoramic Surveillance

Linkage of Front-End Equipment

Unattended Operation of the Checkpoint

Parameters

Screen Size

5"

Screen Resolution

1280*720

Face Recognition

1/2.7" Industrial Dual Camera System with 2 Megapixel

lris Recognition (Optional)

5 Megapixels, Resolution >640*480, Maximum Frame Rate: 2592*1944@30fps

ID Reading

Support for NIR Light Compatible Documents Following the Provisions of lCAO 9303 Standard Part 1-4;Type A and B Contactless 13.56mhz Smart lC Cards of lOS14443;1D Codes (2 of 5 inter leaved, 2 of 5 industrial, Code128 and Code 39);2D Codes (in PDF417, QR, Datamatrix™ and Aztec Formats) on Paper or Mobile Phones

Route of the Acquisition Device

60cm for Up, Down, Forward and Backward Expansion

Speaker

≥100dB

Visible Conversation

Compatible with Major SIP-Based IP PBX/Soft Switch/lMS Platforms

Sensitivity for Obstacle Avoidance

Detection Frequency up to 28Hz

Communication Port

Network Interface

Working Environment

Semi-Outdoor (Install inside the Ceiling)

Working Voltage

AC220V+10%,50Hz+5%

Rated Power

800W

Working Temperature

0°C~+55°C

Storage Temperature

0°C~+55°C

Relative Humidity

10%~90%RH, Non-Condensation

Size

L*W*H=450*695*1905mm
