Introduction

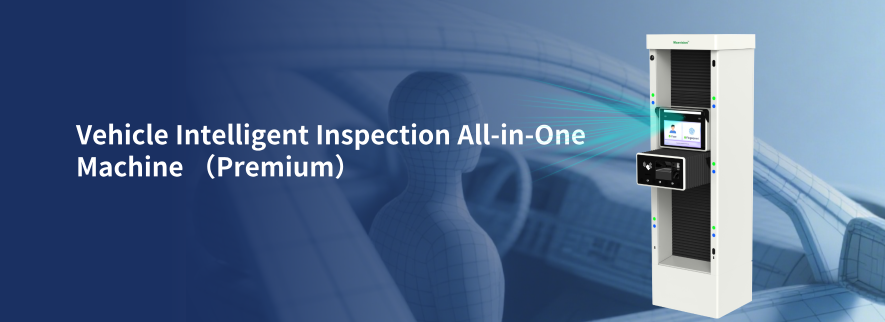

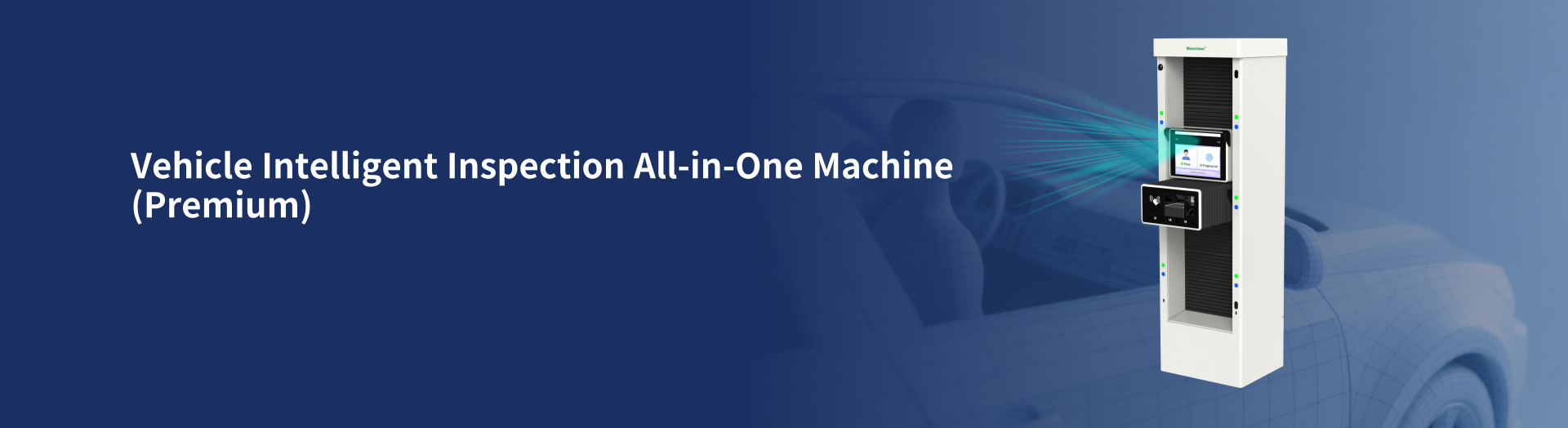

Maxvision independently developed this Vehicle intelligent Inspection Al-in-one Machine which is an intelligent
checking product. This product is designed to enhance the automated management of lanes and to self-capture and verify the identity of personnel passing on the lanes. Functions including facial recognition, fingerprint recognition, barcode scanning, document recognition, abnormal alarm, pass printing, video intercom, and so on. Simultaneously, it employs a multi-axis transmission mechanism featuring automatic lifting and extension / retraction capabilities. This enables precise and eficient positioning for occupant data collection, achieving drive-through verification. lt is suitable for campus, ports where the need to capture and verify the information of passengers in the lane.

Features

Variety of Inspection Methods

Multi-dimensional Spatial Vehicle Positioning Detection

Automatically Adapts to Varying Vehicle Ride Height

Unmanned Checkpoints

Parameters

Display Screen

15.6" display with 1920x1080 resolution, Brightness 500cd/㎡, Amplifier volume: >90dB

Facial Recognition Camera

1/2.7" industrial-grade binocular camera, 2MP resolution, FRR ≤ 0.01%, FAR 299%

OR Code Recognition

1D: UPC/EAN/CODE128/CODE 32/CODE 39/CODE 93/UCC/UPC A, etc.2D: QR CODE DATA MATRIX PDF417,etc.

IC/D Verification

Supports card types 1S0/lEC14443 A/B and FeliCa, and supports reading125KHz ID cards and 13.56MHz IC cards

Fingerprint Capture (Optional)

Capture window size: 42*47mm, image capture pixel: 640*640, resolution: 500dpi

OCR Reader (Optional)

Including Visible light, 850nm IR,365nm UV, 12MP CMOSsensor, Supports image capture and data extraction of ICA0 DOC 9303 compliant: TD1,TD2,TD3

RFID Inspection (Optional)

Operating frequency: 902-928MHz, Output power: 0-33dBm

Automatic Positioning

Vertical travel: 1200mm (effective), Horizontal extension: 300mm (effective)

Visible Conversation

One-way video, resolution: 1920*1080, pixels:2MP

Voucher Printing (Optional)

Thermal Printing at 250 mm/s max, Paper Width: 60/80/82.5mm

Personnel Temperature Measurement (Optional)

The temperature measurement range is 30°C~ 42°C

Speaker

≥90dB

Communication Port

Network Interface

Working Environment

Semi-outdoor (Install inside the Ceiling)

Working Voltage

AC 220V±10%, 50Hz±5%

Rated Power

500W (Max 1200w)

Working Temperature

-20°C~+70°C (Indoor)

Storage Temperature

-30°C~+80°C (Indoor)

Relative Humidity

≤90%RH, Non-Condensation

Size

L*W*H=650*600*2250mm
