Introduction

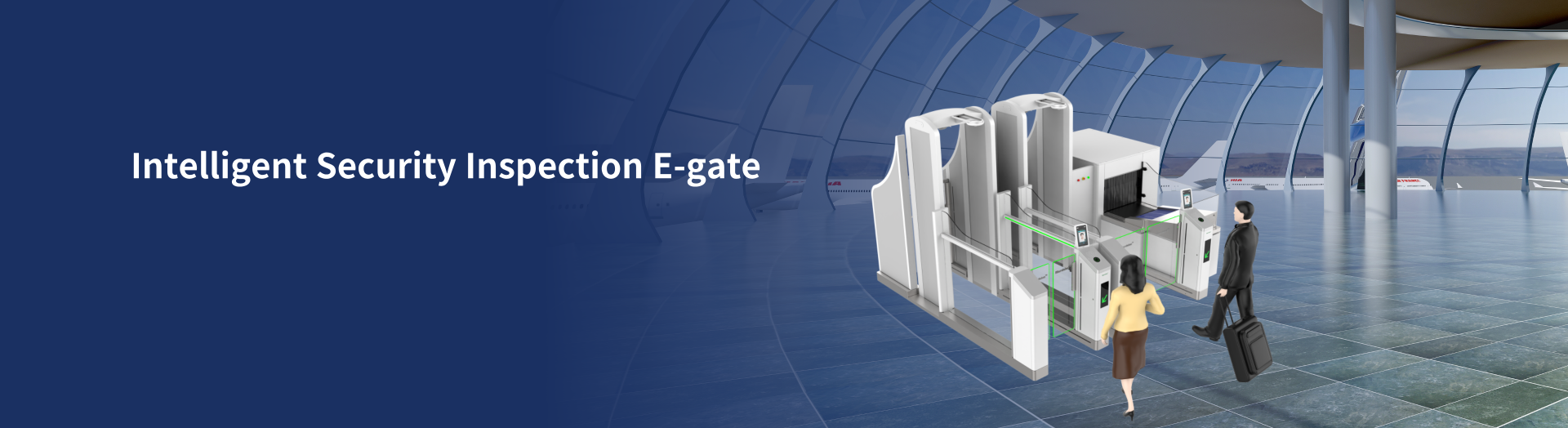

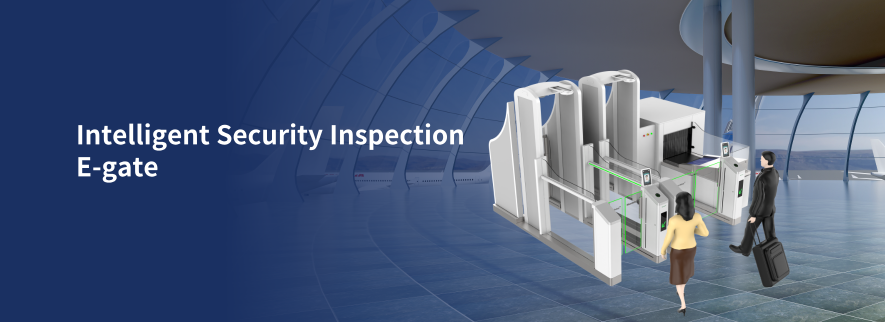

The Intelligent Security Inspection E-gate is a comprehensive personnel inspection and passage system. The system integrates face recognition, palmvein recognition, one-click start, metal detection door, carry-on baggage inspectionand other functions to achieve 100% comprehensive and intelligent inspection of passing personnel and luggage, effectively improving the security level of the park and the efficiency of personnel luggage inspection. This product can be used in entrance and exit scenarios of major airports, governments office buildings, state agencies, financial banks and other high-risk prevention-level sensitive andconfidential places.

Features

Highly Intelligent Integration

High Security Level Inspection

Personnel Information Binding to the Luggage

Ultra-long Service Life

Parameters

Face Recognition

Face Capture Range: 1.1~1.2m Recognition Accuracy: 99% with a FAR of 0.01%

Palm Vein Recognition

FRR <0.4% at FAR <0.0001%

Temperature Measurement Accuracy

±0.3°C

Luggage Recognition

Backpacks, handbags, shoulder bags, crossbody bags, and clutches

Communication Interface

Network Port

Input Voltage

AC 220V±10%, 50Hz±5%

Rated Power Consumption

600W (excluding X-ray machine)

Operating Temperature

-10°C~+50°C (Indoor)

Storage Temperature

-20°C~+60°C (Indoor)

Relative Humidity

10%~90%RH, No condensing

Gate Type

Swing Gate

Gate Service Life

>20 million times

Channel Width

<1200mm (Entry)

Reference Size

L*W*H=4350*2555*2400mm
