Introduction

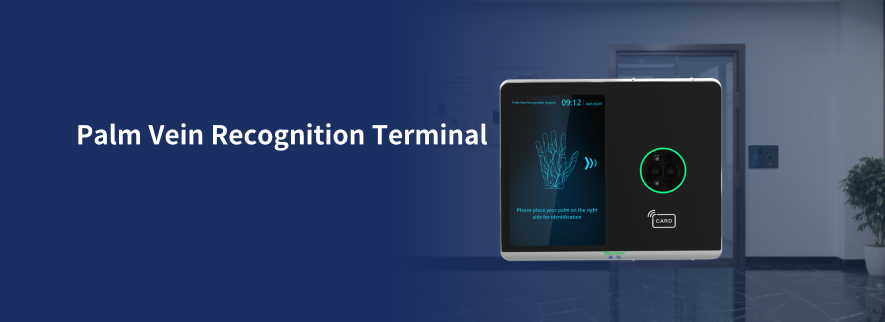

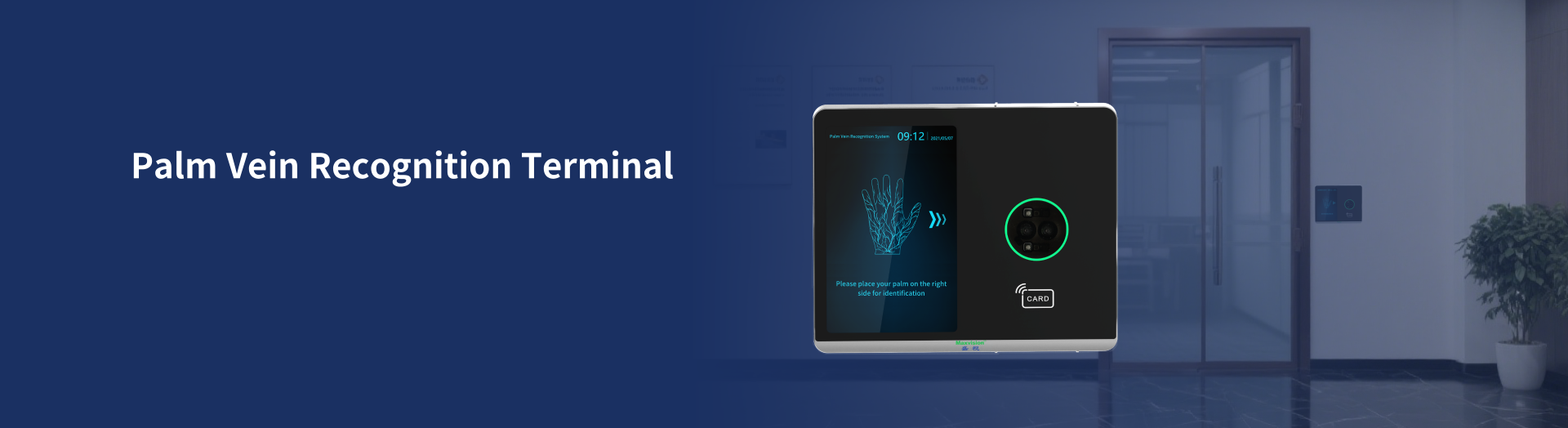

Maxvision Palm Vein Recognition Terminal adopts Al recognition technology, combined with scientific applications such as vision, optics, biology, etc., uses multi-band infrared imaging technology to obtain the palm vein distribution map of the palm, and performs biometric identification through a dedicated comparison algorithm to achieve ultra-high performance. The equipment has the advantages of safety and reliability, non-contact authentication, live detection, good anti-interference, and high accuracy. lt can be embedded in access control, gates, self-service terminals and other systems, and is widely used in customs, border defense, seaports, communities buildings,  access controlled premises etc..

Features

High-speed Authentication

All-angles Recognition

Recognizable with Offset

Normal Recognition of Wet Hands

Recognizable in Water & Mist Environment

Backlight Recognition

Uniqueness of ldentification Characteristics

Authentication Security is Extremely High

Parameters

Model

MVNT-868*-A107-T0

Device Screen

7-inch HD LCD touch screen

Screen Resolution

1280*800 resolution; 800:1 contrast ratio

Device Capacity

1GB LPDDR3 8GB EMMC

Operating System

Linux

Processor

Quad-core Arm Corte XA7 32-bit core 2.0Tops

Palm Vein Recognition Accuracy

Rejection rate <0.4% when false positive rate <0.01%

External Communication

Default data transmission through LAN port or RS232 interface, optional 4G, Bluetooth, WiFi and other wireless transmission modules; optional RS485 * 1, Wiegand in/out * 1, USB* 2; support for offline use

Operating Voltage

DC 12V/2A

Operating Temperature

-20°C~+60°C

Working Humidity

10%RH~95%RH

Operation Environment

Indoor

Installation

Wall-mounted or desktop mounted
