Introduction

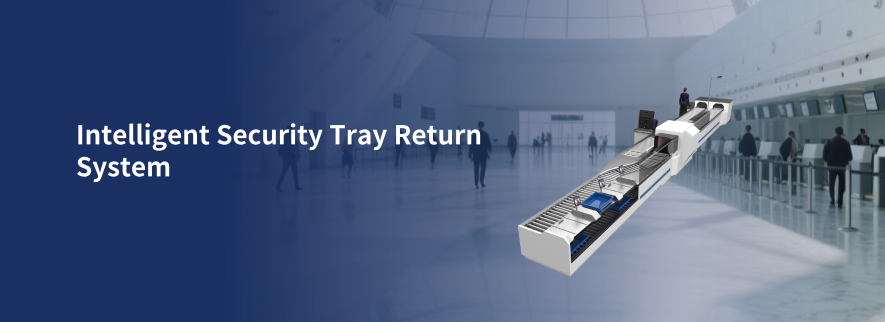

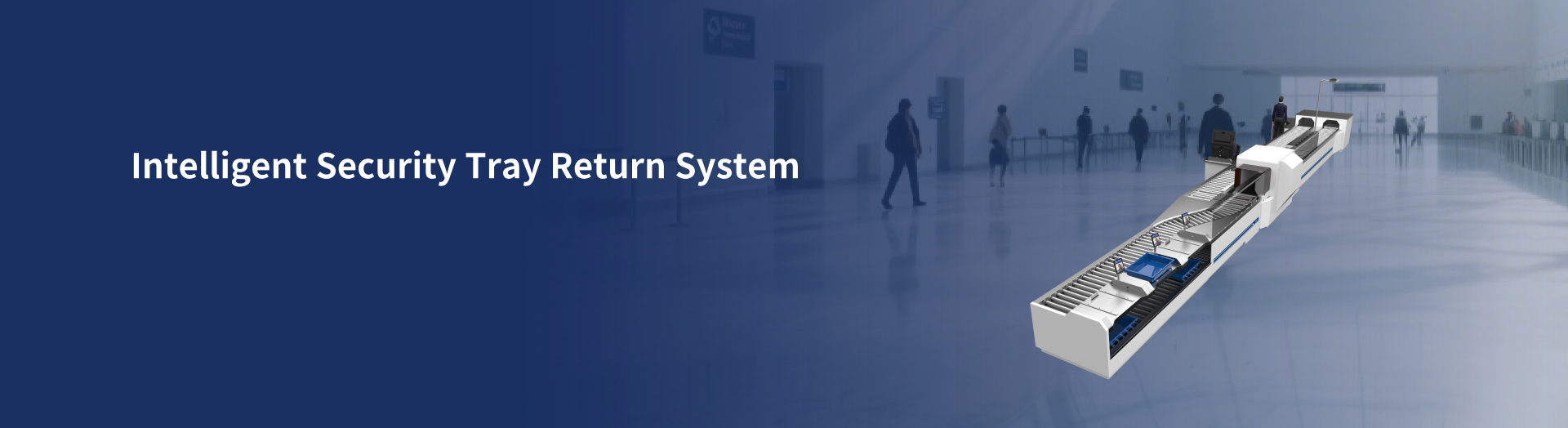

The Intelligent Security Tray Return System is a fully integrated tray return system engineered for high-volume, high-security environments. It combines facial recognition, image analysis, tray tracking, automated sorting, recheck routing, and real-time operations monitoring—creating a true end-to-end automated inspection process. Designed for complex inspection scenarios, it helps streamline workflow, reduce human intervention, and enforce end-to-end process integrity.

Features

Links passenger identity with inspection processes in real time

Automates recheck routing based on image analysis results

Enables precise tray movement through live tracking and dispatch

Synchronizes baggage, tray, and data flows across the system

Centralized dashboard for intuitive system control and diagnostics

Parameters

Power Supply

AC 380V±10%

Rated Power

7KW

Operational Noise Level

≤65dB

Operating Temperature

-10℃~+50℃

Operating Humidity

10%~90%RH, Non-condensing

Service Life

10 Years

Image Processing Latency

50~300ms/image

ID-to-Baggage Association Accuracy

99.9%

Passenger Throughput Rate

≥ 600 trays/hour

Tray Transfer Speed

0.22m/s

System Response Time

≤ 3s (from command to interface response)

Dimensions

15,250mm*2,850mm*2,600mm
