Introduction

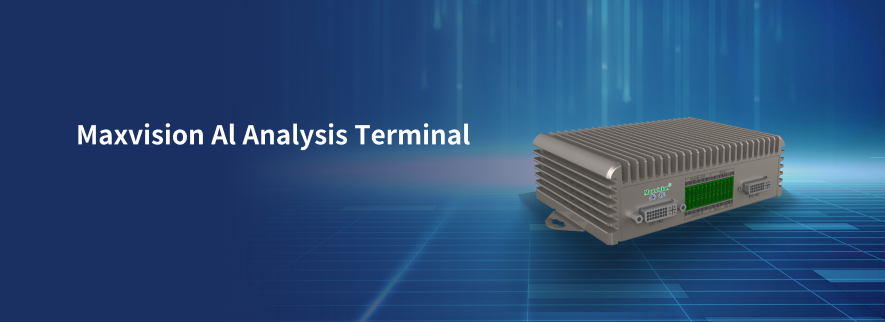

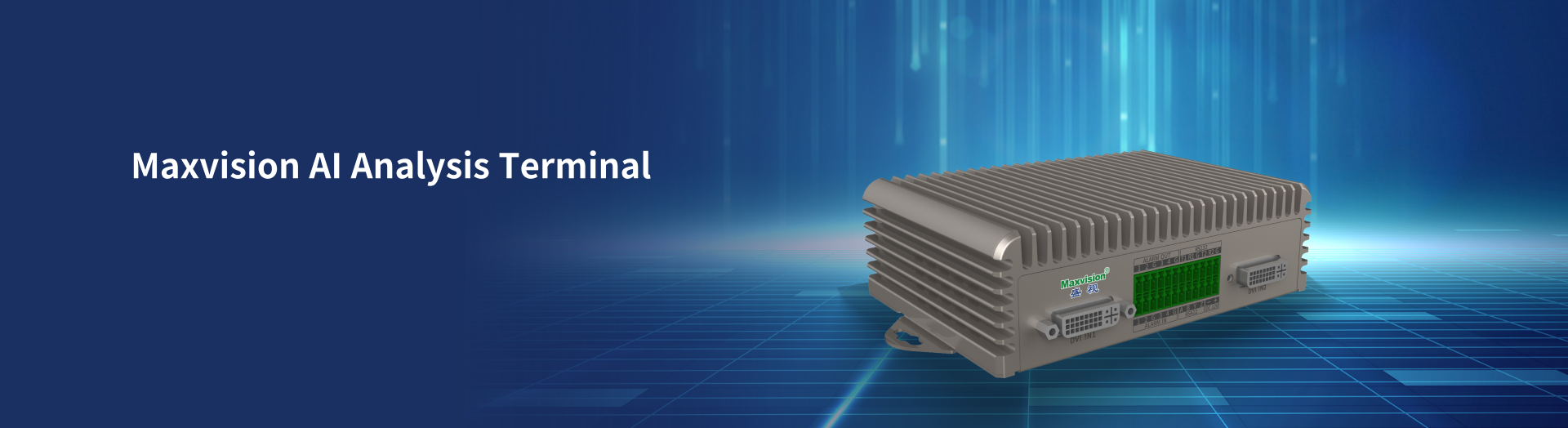

The Maxvision AI Analysis Terminal leverages deep learning–based algorithms to automatically analyze and interpret X-ray security images. It can identify over a hundred categories of prohibited items, including corrosives, explosives, infectious substances, spontaneously combustible materials, flammable solids and liquids, water-reactive substances, organic peroxides, oxidizers, toxic substances, poisonous gases, and contraband such as banned publications, pirated media, and counterfeit branded goods (detection of certain items may require specific hardware configurations). The system offers high accuracy, operational stability, intelligent data processing, and powerful analytics capabilities—enabling efficient and reliable threat detection in modern security screening environments.

Features

Streamlined Security Inspection

Intelligent and Trend-Driven Management

Digitalized Monitoring and Alarm Systems

Modular and Network-Enabled Devices

Parameters

Intelligent Analysis Channels

2 channels

Video Input

HDMI: 4K@30Hz; DVI-D: 1080P@60Hz; VGA: 1080P@60Hz

Video Output

HDMI: 4K@60Hz; DVI-D: 1080P@60Hz

Interface Specifications

Network Interfaces: 2 × RJ45 (10M/100M/1000Mbps adaptive Ethernet) Serial Interfaces: 2 × RS-232, 1 × RS-422 USB Interfaces: 1 × USB 2.0, 1 × USB 3.0 Audio Interface: 1 × 3.5mm audio input/output Alarm Output: 4 × dry contact output Alarm Input: 4 × dry contact input Power Output: 1 × controllable DC 12V Additional Video Output: 1 × VGA, 1 × HDMI

Compatible Device Types

Single-view or dual-view X-ray scanners

Image Interpretation Time

< 500ms per image

Recognition Method

Bounding box + text overlay

Supported Device Quantity

1–2 X-ray security scanners

Integration Method

Video stream access, Ethernet

Display Mode

Single-channel or dual-channel video display

Image Interpretation Mode

Local processing

Peripheral Specifications

USB keyboard and mouse, TF card, or SSD

Operating Voltage

DC 12V±10%

Rated Power

<20W

Operating Temperature

-40℃~+70℃

Operating Humidity

10%~90%RH

Weight

0.7kg

Dimensions

154x92x47mm
