Introduction

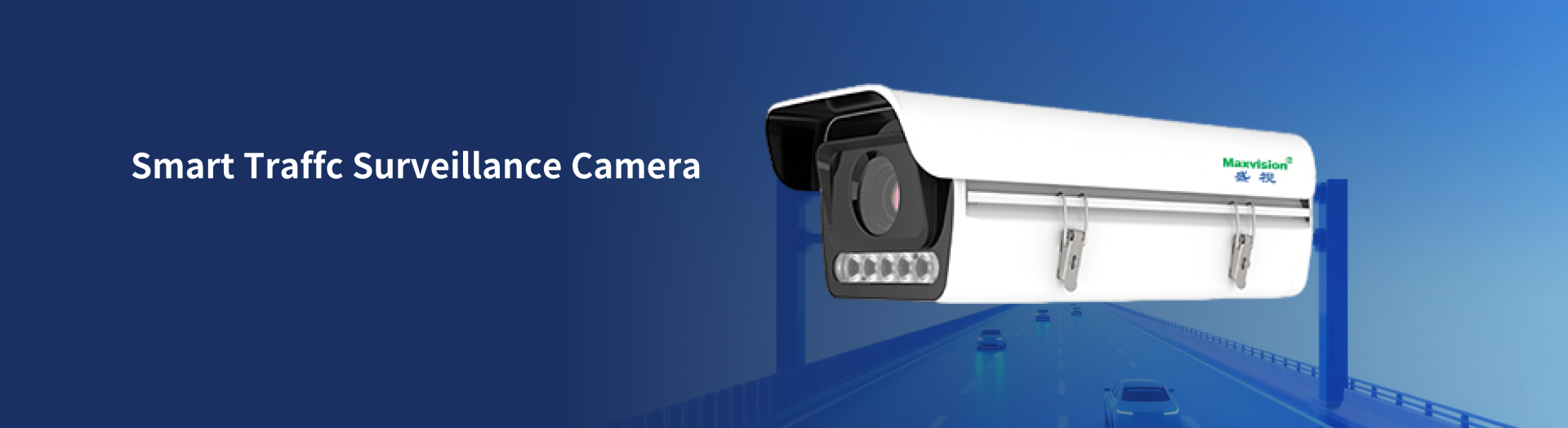

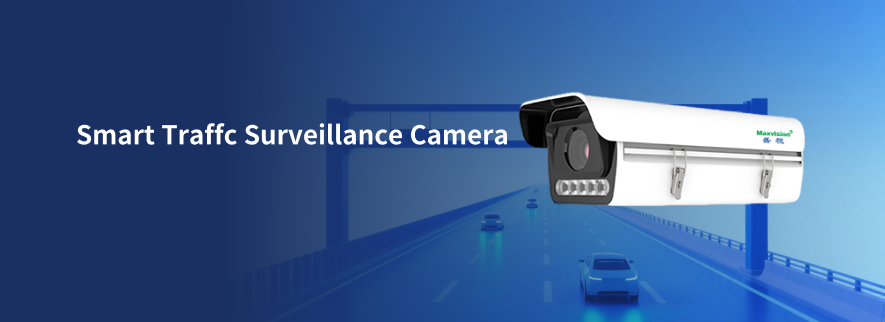

Smart Traffc Surveilance Camera is a smart camera launched by Maxvision to serve the road traffic business. lt adopts an embedded industrial-grade design and built-in deep learning algorithm. It supports a variety of illegal detection and is widely used in red light running, speeding, bayonet, entrance and exit, events and other various application scenarios.
Features
High Definition Lens
Camera Environment Adaptation
Al ultra-low Light Compensation
Deep Learning
Parameters
Computing Power
12 TOPS
lmage Sensor
GS module, 9MP:4096 (H)* 2160 (V)
Effective lmage Size
4096 (H)* 2160 (V)
Minimum lllumination
At maximum resolution: Color:0.005Lux:(F1.2,AGC:ON, 1/30 shutter)Black and white:0.0025: Lux:(F1.2,AGC: ON, 1/30 shutter)
Day and Night Mode
Automatic (lCR)/Color/Black and White/Timed
Wide Dynamic Range
Digital wide dynamic range
White Balance
Aautomatic/manual/one click trigger
Strong Light Suppression
Supported
Digital Noise Reduction
2D/3D noise reduction
Video Encoding Format
MJPEG/H.264/H.265
Video Frame Rate
30/25fps, settable
Multi Channel Encoding
Five code streams
Intelligent Encoding
Extra 265/264
Security Mode
Username and password authentication,supporting 802.1x and HTTPSdigital certificates
Media Security
Supports WEB interface,SDK media stream encryption,and digital watermarking for videos and images
Vehicle Analysis
License plate recognition, body color, vehicle model
Network Interface
2 RJ45 10M/100M/1000M adaptive Ethernet ports
Communication Serial Port
RS485 interface
Alarm Interface
1 alarm input/4 optocoupler switch output/1 relay alarm output
Storage Interface
Provides MicroSD card slot, supports MicroSDHC/MicroSDXC, andsupports a maximum capacity of 256GB memory card
Power Supply
AC100~240V
Power Consumption
Maximum power consumption:60W, typical power consumption:13.7W
Working Temperature
-40°C~+60°C (off fill light)-40°C~+40°C (on fill light)
Working Humidity
5%~95% (non condensing)
Lightning Protection and Surge Protection
Power supply 6kV
Protection Level
IP65
Explosion Proof Level
IK08
Weight
Overall weight: 5.5kgPackaging weight:693kg
Size
Overall size: 520mmx205mmx161mmPackaging size: 590mmx325mmx280mm
