Introduction

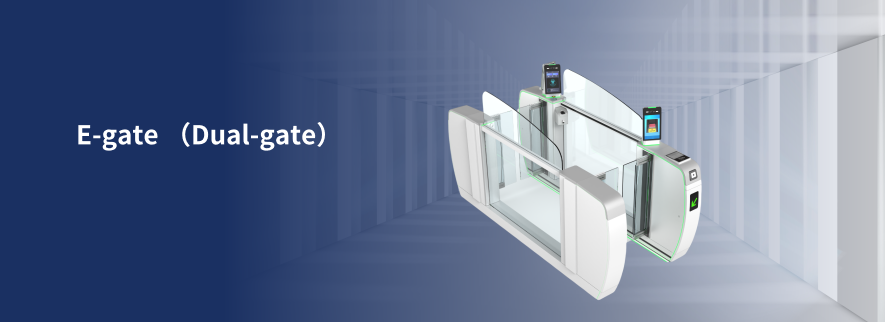

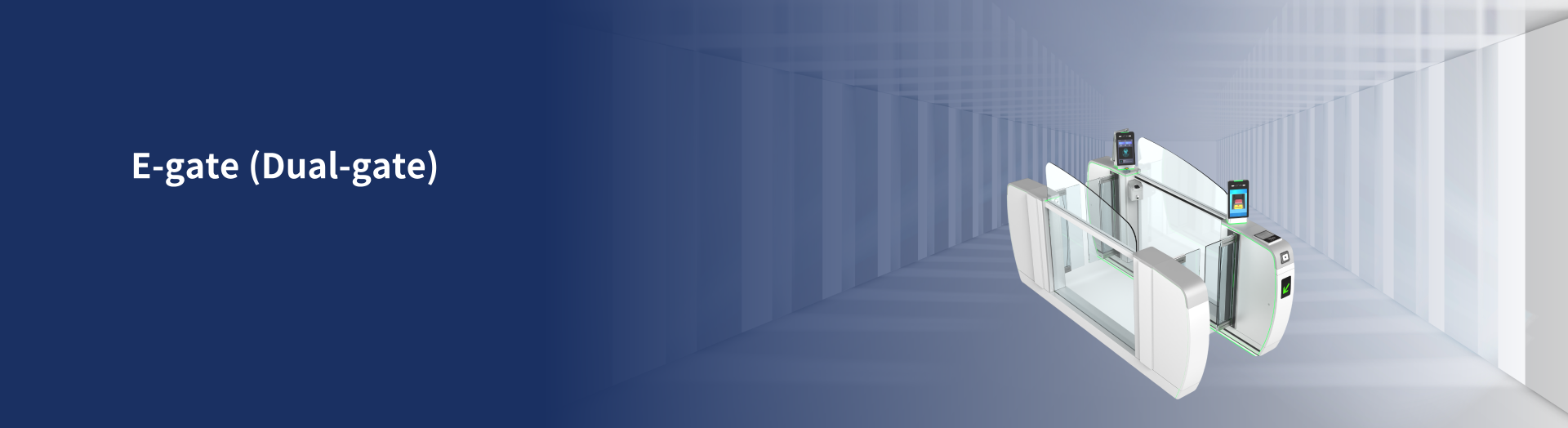

Maxvision’s E-Gate (Dual-Gate) is a fully integrated, intelligent border control solution designed to automate passenger identity verification at controlled entry and exit points. Built for high-throughput environments like airports and seaports, the system combines advanced biometrics with smart control and AI technologies to deliver secure, seamless, and contactless clearance.

The E-gate supports multiple biometric modalities—including facial, palm vein, and fingerprint recognition—alongside document authentication, anti-tailgating video analytics, and one-touch operational control. By eliminating manual checks and reducing processing time, it enhances both traveler experience and border security, making it an ideal fit for modern, high-security transit hubs.

Features

Flexible and Diverse Access Methods

Reduce the Risks of Tailgating / Missed Detection / Abnormal Inspection

Self-service Authentication Efficient Passage

Super Long Service Life

Parameters

Facial Recognition

FAR < 0.0001%, FRR < 0.01%

Palm Vein Recognition

Accuracy > 99%, FAR < 0.0001%, FRR < 0.01%

Fingerprint Recognition

Speed >20 fps

Barcode Scanning Speed

<1s

Door Opening/Closing Time

≥0.3s (adjustable)

Rated Lifecycle

≥10.5 million times

Maintainability MTTR

30 minutes

Noise Level

< 20dB

Operating Voltage

DC 48V

Rated Power

1500W

Operating Temperature

-20°C~+60°C (Indoors)

Storage Temperature

-20°C~+60°C (Intdoors)

Operating Environment

Indoors /Outdoors

IP Rating

IP65

Dimensions

3000*180*1405mm
