Introduction

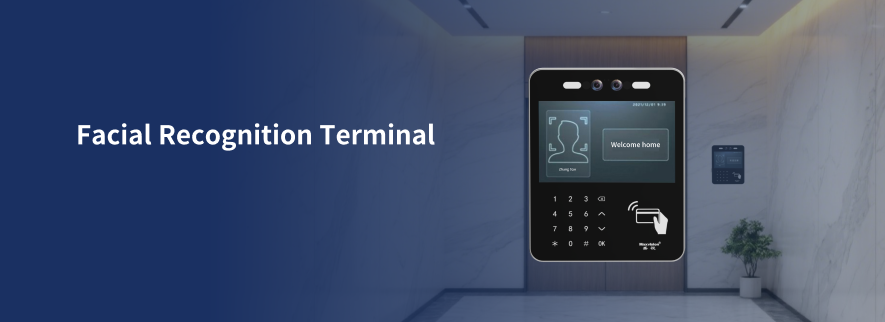

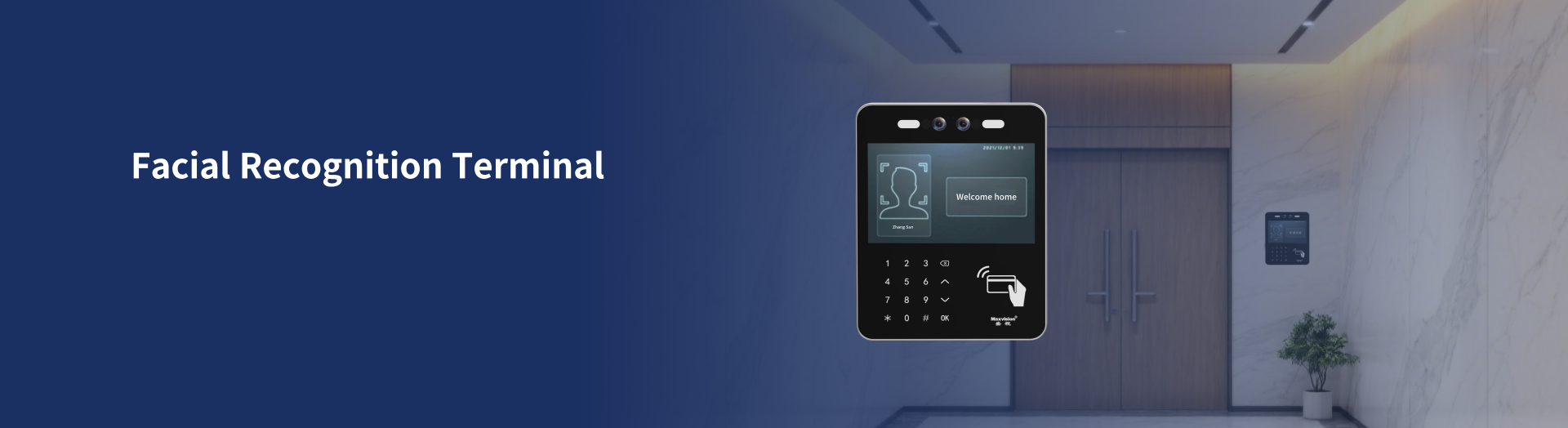

Maxvision Facial Recognition Terminal is designed with touch keys and integrated tempered glass panel protection, equipped with 8-inch lPS HD screen, which can be employed in nearly every entrance/exit where identity authentication and access control is needed. Functioning face-covering attribute detection, liveness detection, this device can recognize or verify visitors’ identity using face, password, card, and other combinations swiftly, accurately, and reliably.

Features

Super Anti-interference Ability

Free Choice of Access Methods

High-speed Recognition

High Security for Visitor Management

Friendly Human-computer Interaction Design

Algorithm Leads

Parameters

Screen Size

8"

Screen

HD IPS Non-touch Screen

Memory

Standard 8GB Memory with Optional SD Card (Maximum up to 512GB Configur Storage)

Communication Port

1 LAN, 1 RS 232, 1 RS 485 (Optional), and 1 Wiegand Input/Output (Optional)

Control Interface

1 Relay Output and 1 Open Button

Working Voltage

DC 12V/1A

Dual Camera

2 Megapixel

Recognizable Distance

0.2~3m

Working Environment

Indoor/Outdoor (Reach lP65 Protection Degree)

Installation

Support Wall-Mounted

Working Temperature

-20°C~+60°C

Size

200*260*30mm
