Introduction

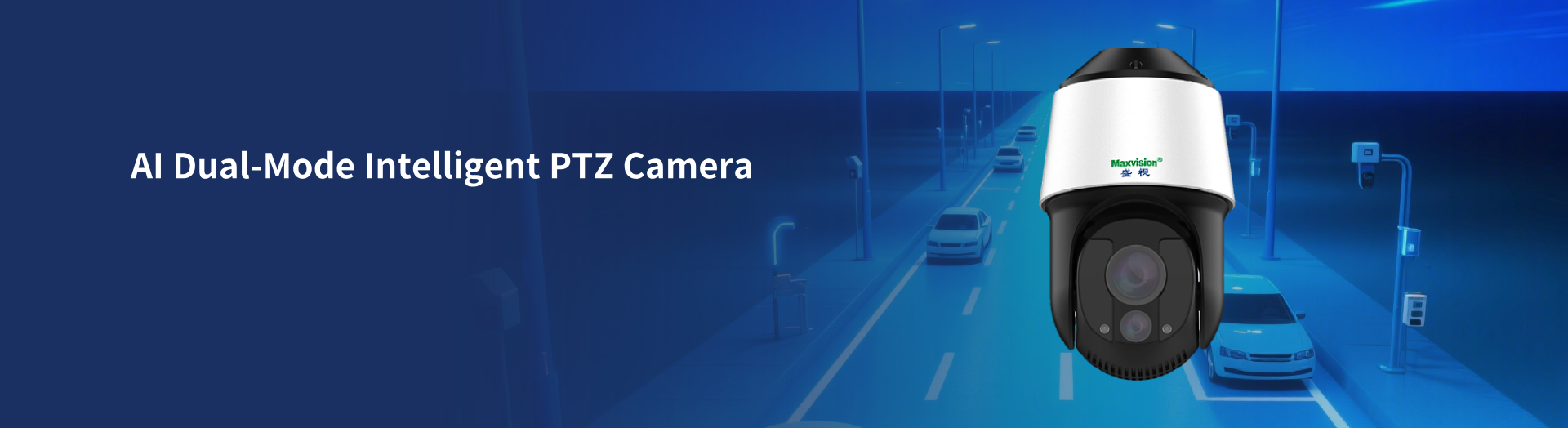

Maxvision AI Dual-Mode Intelligent PTZ Camera adopts dual-mode architecture design, built-in Al deep learning algorithm, binocular collaboration, taking into account details, full panoramic coverage, covering various scenes such as people, vehicles, roads, etc., comprehensively meet the specific needs of the industry.

Features

Panoramic/Detailed View

Multi-Algorithm Integration

Environmental Adaptability

Software Customization

Parameters

Computational Power

2TOPS

Image Sensor

1/1.8” CMOSwide-angle fixed focus: 4MP 2560 (H)1440 (V);zoom: 4MP 2560 (H)*1440 (V)

Effective lmage Size

2560(H)*1440(V)

Minimum Illumination

Color: 0.005Lux (F1.2, AGC: ON, 1/30 shutter), Black and White: 0.0025Lux (F1.2,AGC: ON,1/30 shutter)

Day And Night Mode

Automatic (ICR)Color/Black and White/Timed

Wide Dynamic Range

120dB

White Balance

Automatic/manual/one click trigger

Strong Light Suppression

Supported

Algorithm Fog Penetration

Supported

Digital Noise Reduction

2D/3D noise reduction

Video Encoding Format

H.265/H.264/MJPEG

Maximum Resolution

2560 (H)*1440 (V)

Video Frame Rate: Details

Details: 30/25fps can be set;Panorama: 30/25fps settable

Multi Channel Encoding

Two bit streams

Intelligent Encoding

Extra265/264

Basic Parameters

--

Power Supply Type

AC24V

Power Consumption

Maximum power consumption: 54.1W, Typical power consumption: 13.6W

Working Temperature

-40~60°C (fill light off)-40~40°C (fill light on)

Working Humidity

5%~95%(no condensation)

Lightning Protection Level

6kV

Protection Level

IP66

Anti-riot Level

IK10

Weight

The whole machine weight is 7.6kg; The packaging weight is 9.4kg

Size

Machine Size p242.5mmx414.6mm;Packaging Size:590mmx325mmx355mm
