Introduction

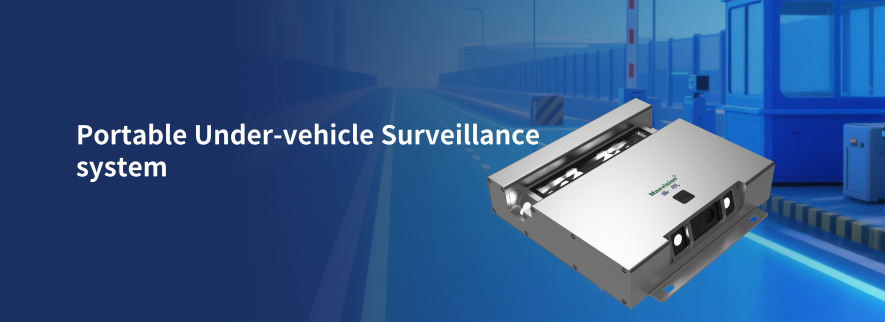

The Portable Under-Vehicle Surveillance System integrates with vehicle bottom image acquisition, image Mosaic display automatic detection and light filling. The system can automatically detect the vehicle for inspection, intelligent light filling, and real-time scanning under vehicle through the HD camera, accurately and efficiently present the full picture of the vehicle, effectively assist the staff to check the hidden and damaged conditions under the vehicle, and prevent the hiding of chemical or biological dangerous goods, bombs, etc.. It is Applicable to customs, public security, traffic, airport, hotel and other entrance control places.

Features

Adapt to a variety of vehicle types

180° ultra-wide angle lens

Automatic LED fill light

Mobile design for rapid deployment

License Plate Recognition

Parameters

lmage Resolution

Maximum support 2048*50000

Field of Angle

180°

Detection Vehicle Chassis Width

≤2000mm

Detection Vehicle Chassis Height

≥120mm

Inspect Speed Limit

≤30km/h

lmage Format

JPEG

Standby Consumption

≤10W

Inspection Consumption

≤120W

Operating Temperature

-20C~+60%C

Power Supply

AC 220V

Ingress Protection

IP67

Product Weight

≤20kg

Product Dimension

460*440*90mm
