Product Overview

The Entry Lane Inspection and Control System that detects theposition of vehicles at the lane entrance in real-time and automatically checks and release them. The equipment is linked with the lane inspection platform to realize real-time monitoring of the location and traffic direction status of entrance vehicles, and automatic control of the gate release. The device integrates the license plate recognition traffic guidance, online OTA upgrades, interactive anti-smashing and other intelligent functions to effectively realize safe and efficient vehicle inspection and passage. This product can be widely used in vehicle entrance scenarios such as transportation, airports, and ports.

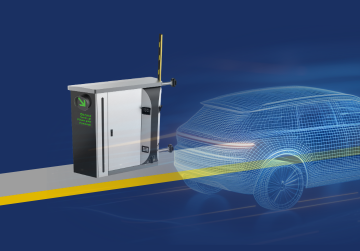

Entry Lane Inspection and Control System Overview

Core Product Features

—

Accurate Vehicle Position ldentification

—

Highly Intelligent Integration

—

OTA Remote Upgrade

—

Suitable for High-Temperature Environment

Core Specifications

Guidance Screen
Outdoor full-color LED screen, active area: 960 mm × 576 mm
License Plate Recognition Camera
Optional
Barrier
Optional
Interactive Anti-smashing
Sensing Speed: 50~700ms
Input Voltage
AC 220±10%V, 50±10%Hz
Rated Power
1600W (Max 3500W)
Working Temperature
-20°C~+70°C
Relative Humidity
≤90%RH, No condensation
Protection Level
IPX4
Usage Environment
Indoor / Outdoor
Product Size
AB: L*W*H =2210*635*1755mmC: L*W*H=1980*220*1730mm
